home ups

   600VA, 650VA, 800VA, 850VA HOME UPS                                                                             12V






Voltage Limits

  •  MainA.C. Lower Recovery Voltage   : 110V ± 5V in Inverter Mode          180V± 5V in UPS Mode
  •  MainA.C. Higher Voltage Limit         : 290V ± 5V in Inverter Mode          260V± 5V in UPS Mode
  •  Output Voltage in Home UPS mode :  220V / 220 ± 10%
  •  Battery LowerVoltage Limit            :  10.3 ±0.3

Output Frequency

  • Main Output Frequency                  : Same as Input
  • Output Frequency                          : 50Hz ± 1%

Battery Charging

  • Battery Charging Voltage Range        : 90 to 290V
  • Maximum Charging Current              : 13 A ± 1 A         (11 A ± 1 A in 600VA)
  • Trickle Charging Current Limit          : 0.5 ± 0.3A
  • Battery Charger Boost Voltage          : 14.2 ± 0.2V
  • Battery Charger Float Voltage           : 13.6 ± 0.2V


  • Overload                                        : 100% (With Auto Reset Function)
  • Short Circuit Protection                  : >300% Load (With Manual Reset Function)

   1400VA, 1450VA HOME UPS                                                                                                24V

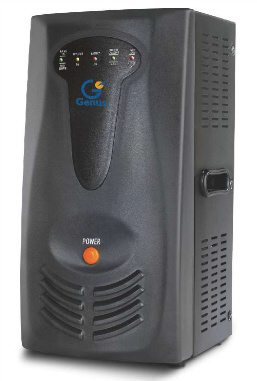

Genus 1400VA Home UPS

Voltage Limits

  •  MainA.C. Lower Recovery Voltage  : 110V ± 5V in Inverter Mode          180V± 5V in UPS Mode
  •  MainA.C. Higher Voltage Limit        : 290V ± 5V in Inverter Mode          260V± 5V in UPS Mode
  •  Output Voltage in Home UPS mode :  220V / 220 ± 10%
  •  Battery LowerVoltage Limit            :  20.6 ±0.5

Output Frequency

  • Main Output Frequency                 : Same as Input
  • Output Frequency                         : 50Hz ± 1%

Battery Charging

  • Battery Charging Voltage Range       : 90 to 290V
  • Maximum Charging Current              : 13 A ± 1 A
  • Trickle Charging Current Limit         : 0.5 ± 0.3A
  • Battery Charger Boost Voltage         : 14.4 ± 0.2V (Per Battery)
  • Battery Charger Float Voltage          : 13.6 ± 0.2V (Per Battery)


  • Overload                                      : 100% (With Auto Reset Function)
  • Short Circuit Protection                : >300% Load (With Manual Reset Function)

   2500 VA HOME UPS                                                                                                           48V


Voltage Limits

  •  MainA.C. Lower Recovery Voltage          : 120V ± 5V in Inverter Mode
  •  MainA.C. Higher Voltage Limit               : 280V ± 5V in Inverter Mode
  •  Output Voltage in Home UPS mode        :  220V / 220 ± 10%
  •  Battery LowerVoltage Limit                   :  41.2V ±0.5

Output Frequency

  • Main Output Frequency                        : Same as Input
  • Output Frequency                               : 50Hz ± 1%

Battery Charging

  • Battery Charging Voltage Range             : 110 to 280V
  • Maximum Charging Current                   : 13 A ± 1 A
  • Trickle Charging Current Limit              : 0.5 ± 0.3A
  • Battery Charger Boost Voltage              : 14.4 ± 0.2V (Per Battery)
  • Battery Charger Float Voltage               : 13.6 ± 0.2V (Per Battery)


  • Overload                                           : 100% (With Auto Reset Function)
  • Short Circuit Protection                     : >300% Load (With Manual Reset Function)

Key Features

  • Pure Sine Wave Output
  • DSP Based Three Stage Smart Charger
  • Smarter Overload Sense, Short Circuit Protection & Reverse polarity protection
  • High surge withstand capability (upto 300%)
  • User friendly LED Display (Message and Faults)
  • Generator Compatible
  • User selectable charging current with high charging option
  • User selectable UPS and Normal mode


Benefits

  • Delivers unmatched noise free performance
  • Ensures  longer battery life and Low water filling
  • Great Power Saving; Saves 40% electricity bill as compared to square wave inverter
  • Keeps expensive appliances 100% safe
  • Uninterrupted power for computers (UPS Mode) - no reboots during power cuts
  • Heavy duty copper transformer ensures efficient performance.
